XGem300PRO GEM Driver

Best solution for implementing GEM environments recognized by leading domestic and international business partners

Summary

Based on "XGemPRO" (same basic features)

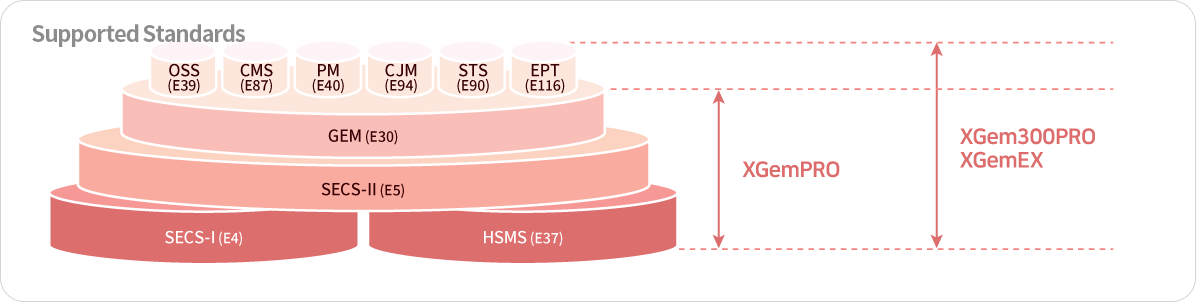

Supports SEMI E39(OSS), E40(PM), E87(CMS), E90(STS), E94(CJM), E116(EPT)

Automated configuration and processing of GEM, 300mm SECS messages

Overview

XGem300PRO is a product that includes XGemPRO as standard and provides additional support for scenarios used on 300mm lines. It supports SEMI E30, E39, E40, E87, E90, E94, E116 specifications and helps users easily respond to 300mm scenarios by creating and managing objects such as Carrier, Substrate, Control Job, and Process Job.

Key Features and Functions

Validated SECS communication (using the XComPRO SECS driver)
ActiveX-based OCX format
Support for various development tools (Visual C++, Visual Basic, C#, Delphi, etc.)
Automated configuration and processing of GEM SECS messages
Automatically created default data for GEM scenarios
Customized messages can be registered and used
Supports SEMI E30(GEM), E39(OSS), E40(PM), E87(CMS), E90(STS), E94(CJM), E116(EPT)
Automated configuration and processing of GEM, 300mm SECS messages
Automatically created default data for GEM, 300mm scenarios

User Interface

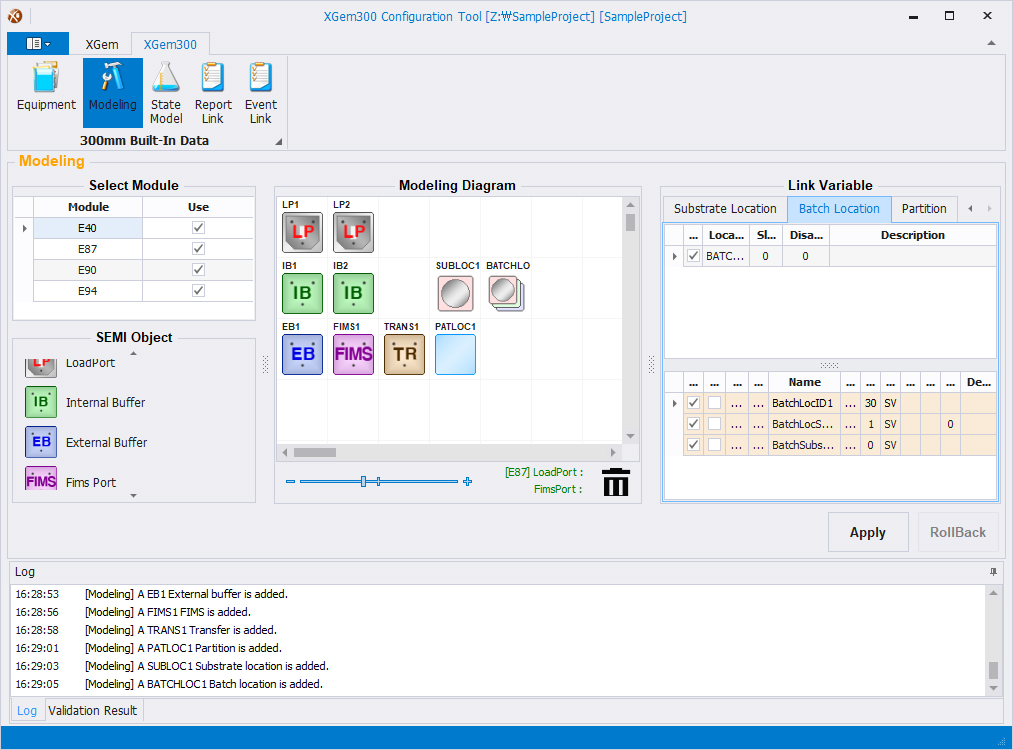

XGem300Pro Configuration Tool

XGem300Pro Configuration Tool

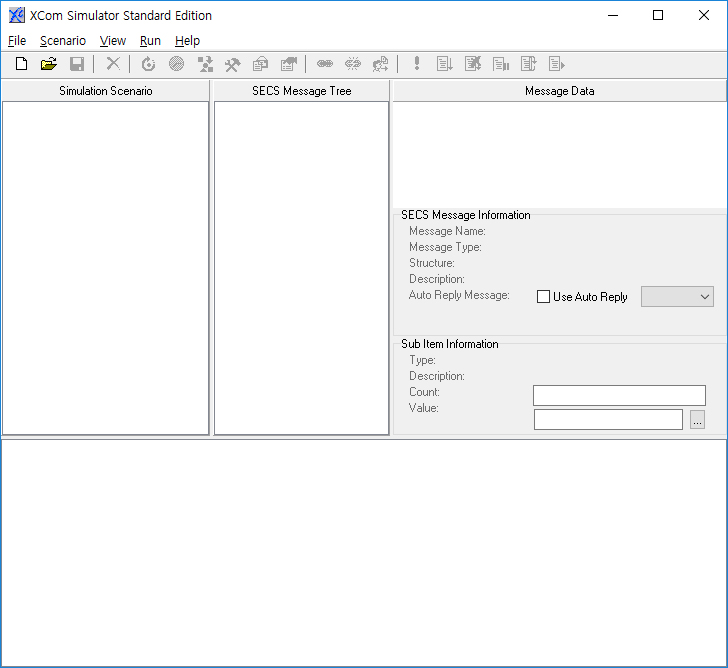

Host Simulator

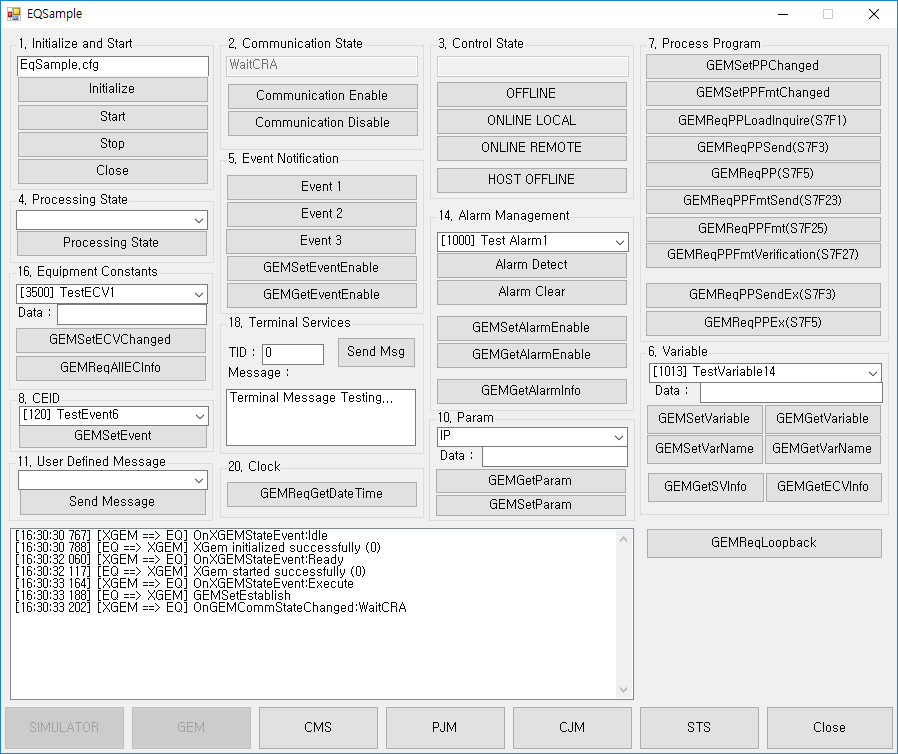

Equipment Sample

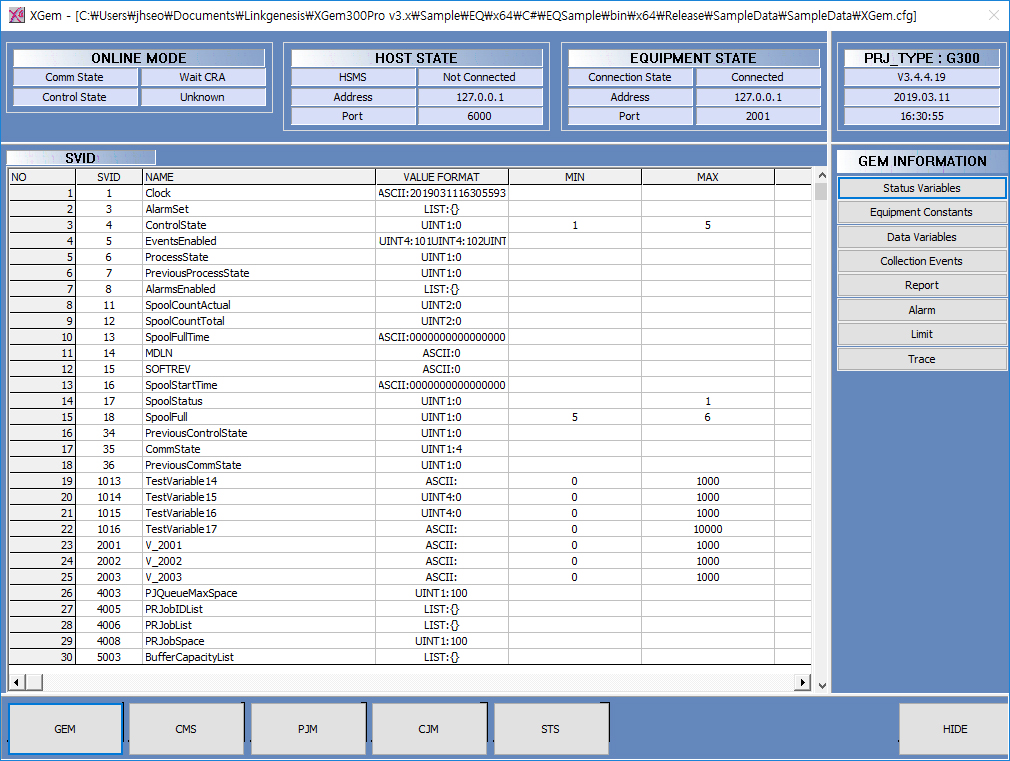

XGem300Pro Process

Recommended system requirements

CPU

Pentium Dual-Core or better

Memory

3GB or better

Windows XP SP2 / Windows Server 2003 SP2 / Windows Server 2008 / Windows Vista SP1
Windows 7 / Windows 8 / Windows 8.1 / Windows 10
(Configuration Tool works with Microsoft .NET Framework 4.0 or later)

Key

Parallel Port or USB Port (3 years Warranty Period / Paid replacement available after warranty period)

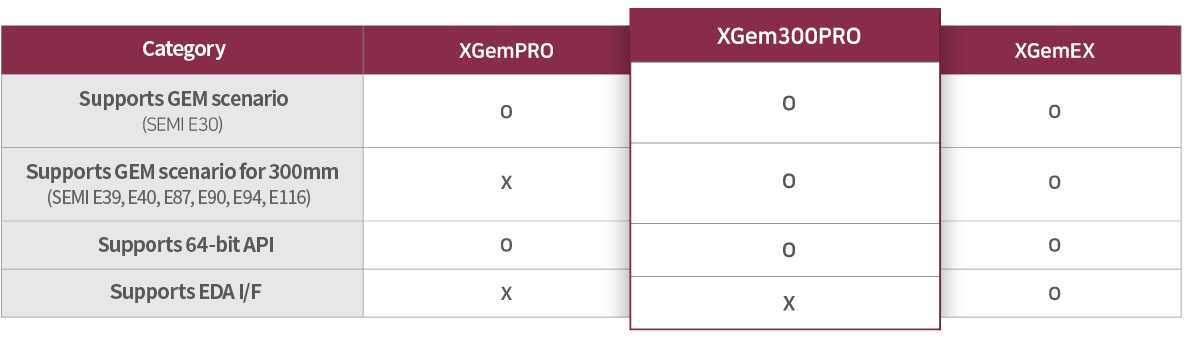

Product Line
