XComPRO SECS Driver

Best solution for implementing SECS environments recognized by leading business partners at home and abroad

Window
Linux

Summary

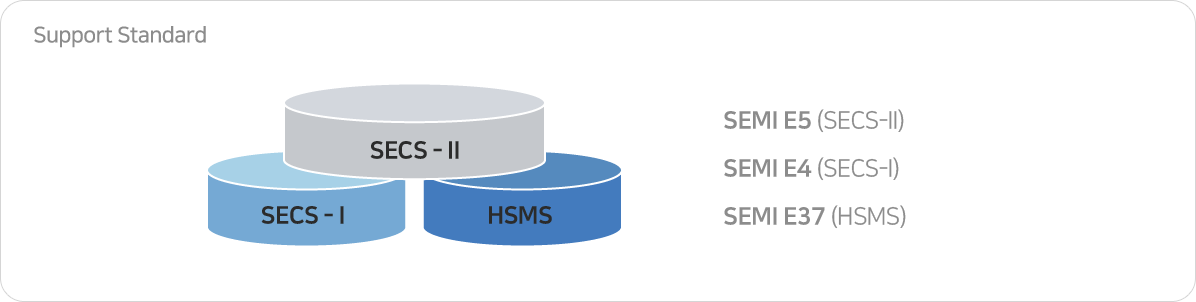

Supports SEMI E4, E5, E37

Recipe Management Update Funtions

Supports standard communication protocols between semiconductor and flat display equipment

Overview

The XComPRO SECS driver is a communication driver that makes SECS*, a standard communication protocol between semiconductor and flat display equipment easier and easier to use.

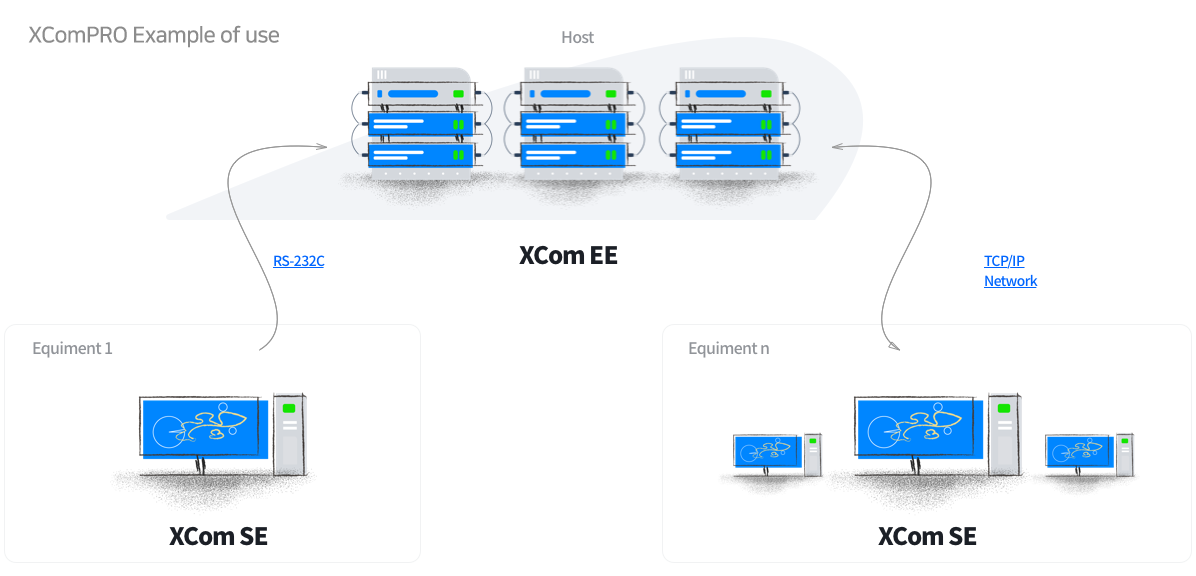

In particular, it supports both SECS-I using RS-232C communication and HSMS using TCP/IP within a single control, so you can effectively respond to work environment change with the same control and usage as needed.

* SECS: SEMI Equipment Communications Standard

Key Features and Funtions

1) XComPRO Key Features

Enhanced security function (Restrict logs by message such as Recipe)
Header Only Log Functions for Specific Messages
Enable Function parameters to be change during runtime
Supports ActiveX OCX (DLL addition support)
Supports SECS-I and HSMS-SS concurrently
Supports various Programming language (Visual C++, Visual Basic, C#, Delphi, etc.)
Timeout check and message retransmission function
Convenient development tools (Configuration / Host Simulator, etc.)
Supports various operational logs (Binary, SECS-II, Event, Alarm , etc.)
64-bit API support
Provides Log Viewer

2) SECS-I Key Functions

Using Multi Block Messages
Enable SECS Communication parameters to be change during runtime (T1, T2, T3, T4, ...)
Automated System Bytes Management
Supports 'Duplicate Block Detection' to keep your data clean into the Message Header.
Supports 'Interleaving function' for messageing

3) SECS-II Key Functions

Automatic management of SECS message transactions
No Reply message setting can be changed at runtime to not require a reply message
Support list item and simple item data format

4) HSMS main function

HSMS-SS Support
Enable HSMS Communication parameters to be change during runtime (T3, T5, T6, ...)
Supports Connection State

Development Support Tools

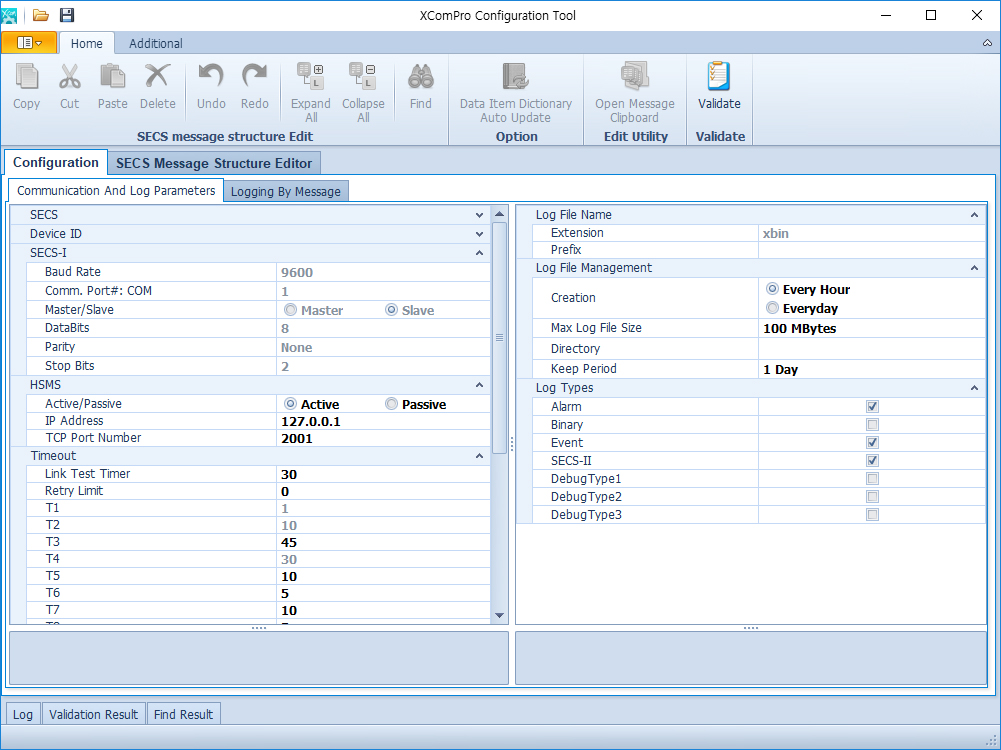

1) Configuration Tool

SECS-I & HSMS communication method setting
Communication Parameter Settings
Automate various operational log management
Select SECS-II, Event, Alarm, Binary Log Format
Automating the Process of Deleting Old Log Files
Easy SECS Message Code Generation Tool by using drag-and-drop capabilities

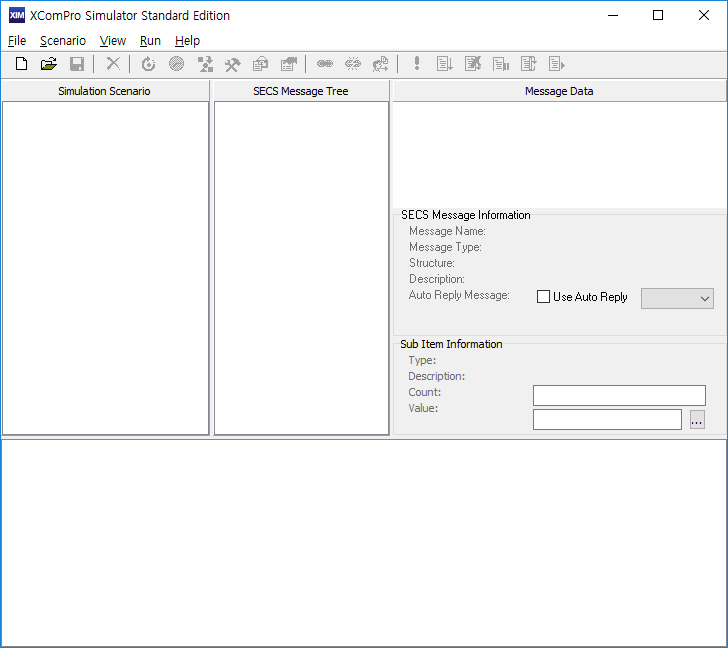

2) Simulator Tool

Message scenario function (Auto-Generates Sequential Message and Loop function, etc.)
Auto Reply Messages
Set Message Item Properties
Verify Communication of each Message

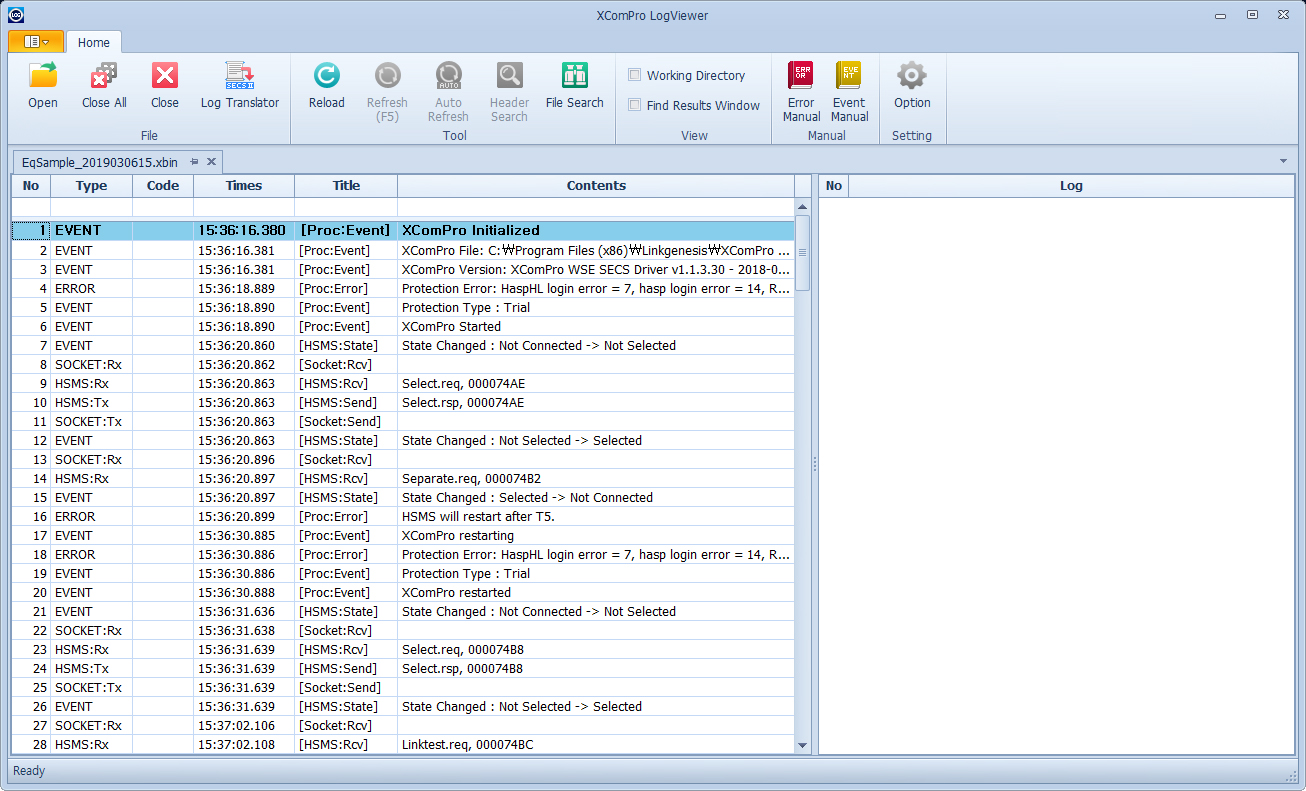

3) LogViewer
